AVM Bottom Drain 12 inch End Outlet for foundation and retaining wall drainage

AVM Bottom Drain 12" End Outlet

SKU BD-End-Out 12"
by AVM Industries
$56.86 - $56.86
$56.86
$56.86 - $56.86
$56.86

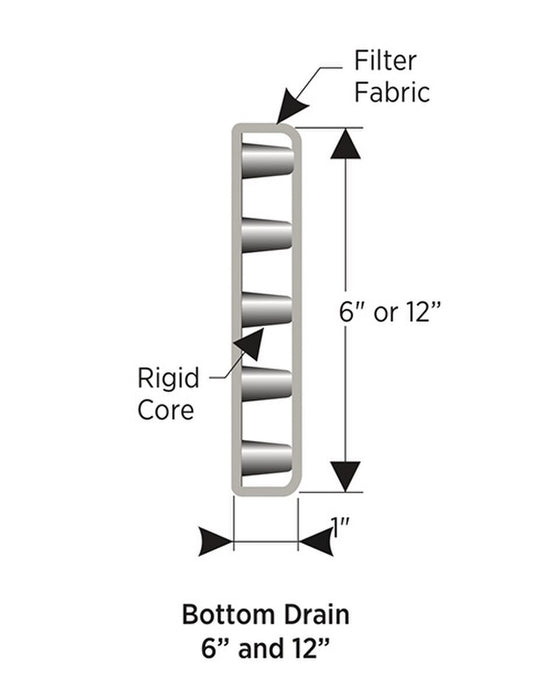

The AVM Bottom Drain End Outlet is a crucial part of a modular composite drainage system featuring a 3-dimensional, high-flow drainage core wrapped in durable non-woven filter fabric. Designed to replace traditional sand and gravel pipe drains, it effectively filters soil while allowing water to flow freely for quick removal via sump pumps or daylight discharge.

This system offers a full range of fittings for fast, hassle-free installation. BD-Clips securely attach the drain vertically against foundation walls, and BD-Tape ensures tight connections between fittings.

Key Benefits:

  • Eliminates the need for gravel and pipe installation

  • Saves time and reduces labor costs

  • Lightweight and easy to handle

  • Cost-effective drainage solution

  • Complies with building codes and approvals

Applications:

  • Basement waterproofing

  • Foundation wall drainage

  • Retaining wall drainage

Specifications
  • Compressive Strength (Core): 9,500 psf (ASTM D-1621)
  • Thickness (Core): 1" (ASTM D-1777)
  • Flow Rate (Hydraulic Gradient = 1, Core): 30 g/min/ft (ASTM D-4716)
  • Puncture Resistance (Fabric): 250 lbs. (ASTM D-6241)
  • Apparent Opening Size (AOS, Fabric): 70 U.S. Sieve (ASTM D-4751)
  • Grab Tensile Strength (Fabric): 100 lbs. (ASTM D-4632)
Documents
