AVM Bottom Drain 12" Side Outlet for foundation and retaining wall drainage

AVM Bottom Drain 12" Side Outlet

SKU BD-Side-Out 12"
by AVM Industries
$56.86 - $56.86
$56.86
$56.86 - $56.86
$56.86

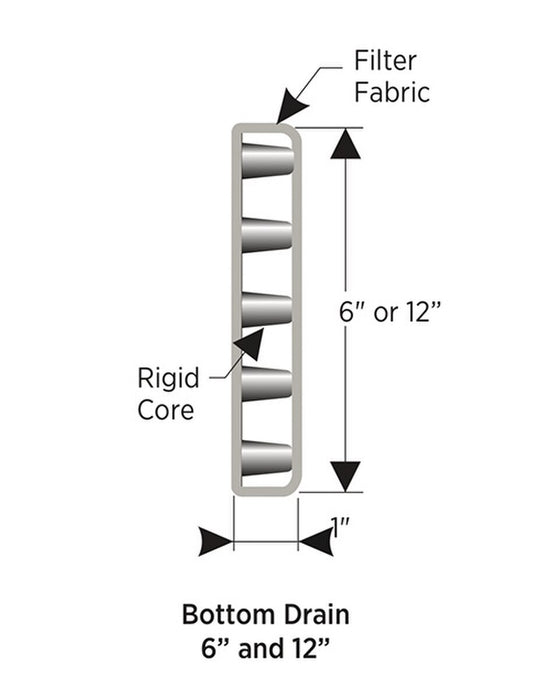

The AVM Bottom Drain Side Outlet is a high-performance foundation drainage solution designed to replace traditional pipe and gravel systems. Featuring a 3D high-flow drainage core wrapped in non-woven filter fabric, it effectively filters soil while allowing water to flow freely for discharge to a sump or daylight.

Ideal for residential and commercial waterproofing applications, this bottom drain system is lightweight, easy to install, and cost-effective. It’s perfect for managing water around foundation walls, basements, and retaining walls.

With a full range of fittings, BD-Clips for secure wall attachment, and BD-Tape for connecting components, installation is quick and reliable.

Benefits:

  • Replaces traditional gravel and perforated pipe drains

  • Speeds up installation and reduces labor costs

  • Lightweight and easy to handle

  • Cost-effective with proven performance

  • Approved for use in waterproofing systems

Applications:

  • Foundation wall drainage

  • Basement waterproofing

  • Retaining wall drainage

Specifications
  • Compressive Strength (Core): 9,500 psf (ASTM D-1621)
  • Thickness (Core): 1" (ASTM D-1777)
  • Flow Rate (Hydraulic Gradient = 1, Core): 30 g/min/ft (ASTM D-4716)
  • Puncture Resistance (Fabric): 250 lbs. (ASTM D-6241)
  • Apparent Opening Size (AOS, Fabric): 70 U.S. Sieve (ASTM D-4751)
  • Grab Tensile Strength (Fabric): 100 lbs. (ASTM D-4632)
