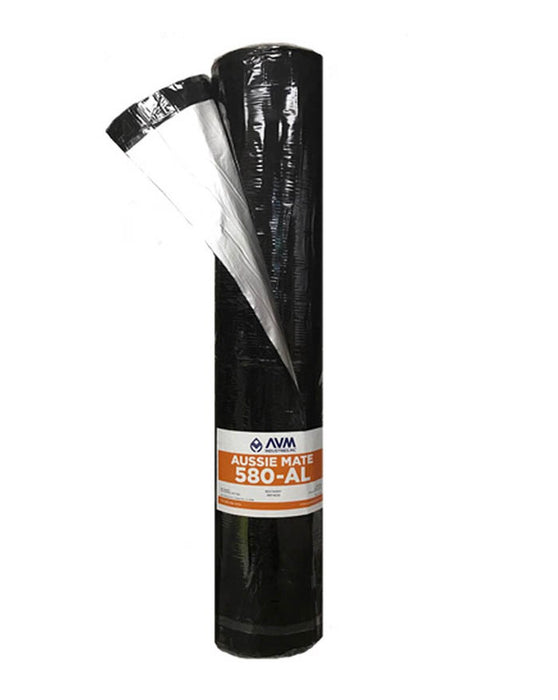

AVM Aussie Mate 580-AL waterproofing membrane roll – 60 mils, UV-stable with aluminum facer

AVM Aussie Mate 580-AL (60 Mils) 3.28' X 65.6' per Roll

SKU Aussie Mate 580-AL-60
by AVM Industries
$271.15 - $271.15
$271.15
$271.15 - $271.15
$271.15



AVM Aussie Mate 580-AL is a UV-stable, heavy-duty 60-mil bituminous sheet membrane designed for below-grade waterproofing and methane protection. Reinforced with an aluminum facer, this advanced membrane offers outstanding adhesion, elongation, and recovery properties. Unlike many other sheet membranes, Aussie Mate 580-AL can withstand UV exposure for up to 180 days, making it highly durable in demanding environments.

Applications:

  • Below-grade foundation walls (concrete & CMU)

  • Retaining walls

  • Basements

  • Decks and planters, including:

    • Plaza decks

    • Split-slab decks

    • Planter boxes

Specifications
  • Water Vapor Permeance: 0.01 Perms (ASTM E 96 water method)
  • Resistance to Decay: 0.01 Perms (ASTM 154 / ASTM E 96 water method)
  • Tension and Elongation (MD) % Elongation: 68% (ASTM D 2523 — Tested Bitumen w/Aluminum)
  • Tension and Elongation (CMD) % Elongation: 65% (ASTM D 2523 — Tested Bitumen w/Aluminum)
  • Adhesion to Concrete/Masonry (lbf/in.): Pass (ASTM D 903)
  • Puncture Resistance (lbf): 125 lbf (ASTM E 154)
  • Hydrostatic Pressure Resistance Max (PSI): 100 (ASTM D 5385)
  • Hydrostatic Pressure Resistance Max (ft of water): 231 ft (ASTM D 5385)
  • Hydrostatic Pressure Resistance (ft of water): 171 ft (ASTM 751)
  • Low Temperature Flexibility (MD -20°F): Pass (ASTM D 5147)
  • Low Temperature Flexibility (CMD -20°F): Pass (ASTM D 5147)
  • Tensile Strength: 540 PSI (ASTM D 412)
  • Bonded Seam Strength: 46 lbf (ASTM D 882)
  • Methane Gas Transmission Rate: 0.5 mL/day·m²·atm (ASTM D4068 Annex A / D412)
  • Microorganism Resistance (Soil Burial): Pass (ASTM D4068 Annex A / D412)
  • Oil Resistance Test: Pass (ASTM D543 / D412)
  • Heat Aging: Pass (ASTM D 412)
  • Water Absorption (24h): 0.1% by weight (ASTM D 570-98)
  • Low Temperature Flexibility: Pass (ASTM D 1970 / D 1970M-20)
  • Low Temperature Crack Bridging: Pass (ASTM C 1305 / C 1305M-16)
Documents
